75009702 | LAPP

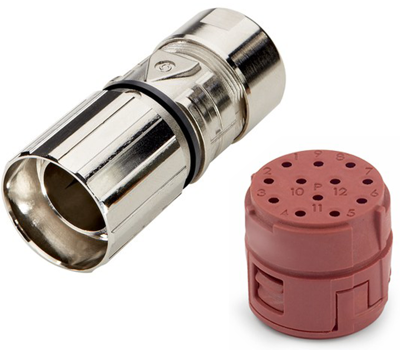

Jack, 12 pole, solder cup, screw locking, straight, 75009702
Order No.: 67F6246
EAN: 4044774421209
MPN:
75009702
EPIC KIT M23 D6 12-POL
Unit Price (€ / pc.)
37.5802 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
37.58 € *
Price list
Quantity
Price per unit*
1 pcs.
37.5802 €
10 pcs.
34.9503 €
25 pcs.
32.5108 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector kits, type LAPP EPIC CIRCON M23.
with safe protection against vibration, corrosion and EMC radiation, integrated labeling field, clearly visible and perceptible mating; Contacts: solder terminals. Rated voltage: 100/50 V. Rated surge voltage: 1.5/0.8 kV. Rated current: 7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.0 to 13.5 mm. Terminal cross section: up to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.
12-pole.
Technical attributes (type, version): 75009702, female cable connector
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Contact connection | solder cup | |
| Cable cross-section | 1.0 mm² | |
| Pin number | 12 pole | |
| Version | jack | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
