75009690 | LAPP

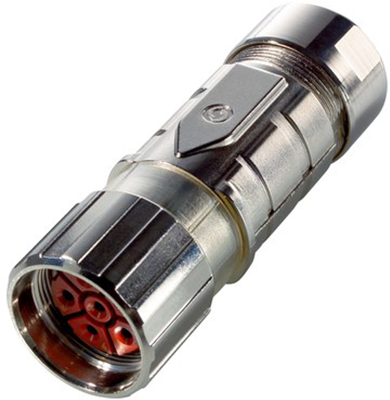

Jack, 6 pole, solder cup, screw locking, straight, 75009690
Order No.: 67F6206
EAN: 4044774419275
MPN:
75009690
EPIC KIT LS1 D6 6-POL
Unit Price (€ / pc.)
57.8697 € *
Standard delivery time from the manufacturer is: On Request
Circular connector kits, type LAPP EPIC CIRCON LS1.
with safe protection against vibration, corrosion and EMC radiation, shield connection terminal, clearly visible and perceptive plugging, label field with removable transparent ring, with crimp terminals. Rated voltage: 630/250 V. Rated surge voltage: 6.0/4.0 kV. Rated current: 22/7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.5 to 15.5 mm. Terminal cross-section: 0.5 to 2.5/0.14 to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.
6-pole with 2.0 mm contacts.
Number of contacts: 5 + PE.
Technical attributes (type, version): 75009690, female cable connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| Version | jack | |
| Assembly | panel mounting | |
| Cable cross-section | 0.5-2.5 mm² | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting | |
| Pin number | 6 pole | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
