73002744 | LAPP

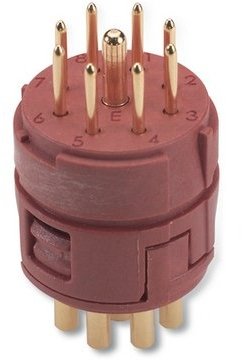

Plug, 9 pole, solder connection, straight, 73002744
Order No.: 30P1509
EAN: 4044773741506
MPN:
73002744
EPIC SIGNAL M23 8+1E SLM (5)
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
9.5081 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.51 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5081 €
5 pcs.
8.5561 €
10 pcs.
8.0682 €
20 pcs.
7.6041 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 73002744, Lapp Kabel
Inserts for M23 circular connector
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Mechanical resistance
- Assembly time
- Robust
- Variety of approval certifications
Applications
- Plant engineering
- Measurement and control technology
- Apparatus construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Shell Material | brass | |
| Orientation | straight | |
| Pin number | 9 pole | |
| Version | plug | |
| Cable cross-section | 0.14-1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
