73000029 | LAPP

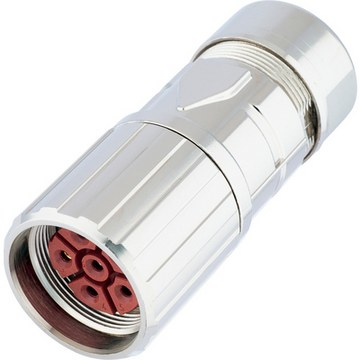

Jack, 6 pole, crimp connection, straight, 73000029
Order No.: 30P1157
EAN: 4044773622959
MPN:
73000029
EPIC POWER LS1 D6 5+PE K10,5-
Series: EPIC POWER LS1
Unit Price (€ / pc.)
39.6627 € *
Available: 3 pcs.
Total Price:
39.66 € *
Price list
Quantity
Price per unit*
1 pcs.
39.6627 €
10 pcs.
36.2593 €
50 pcs.
33.9864 €
100 pcs.
31.7135 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 73000029, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Optimum strain relief
- Space requirement
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Shell Material | zinc die casting | |
| Cable diameter | 10.5 to 15.5 mm | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Version | jack | |
| Cable cross-section | 0.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
