73000023 | LAPP

Panel plug, 6 pole, crimp connection, straight, 73000023

Order No.: 30P1188
EAN: 4044773623017
MPN:
73000023
EPIC POWER LS1 F7 5+PE 10,5-15
Series: EPIC POWER LS1

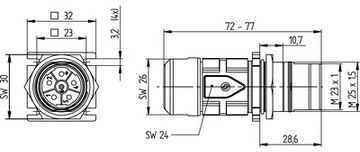

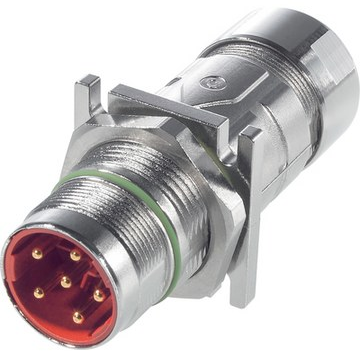

73000023 LAPP Other Circular Connectors Image 1
73000023 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.9698 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
319.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
15.9698 €

Circular connector, 73000023, Lapp Kabel

Circular connector for servo motors and power supply

Features

  • Mechanical and plant engineering
  • Wind energy
  • Good chemical resistance
  • Corrosion-resistant
  • Maximum vibration protection
  • Mechanical resistance
  • Assembly time
  • Optimum strain relief
  • Space requirement

Applications

  • Plant engineering
  • Servo drives and servo assemblies
Technical specifications
Filter Property Value
Pin number 6 pole
Shell Material zinc die casting
Cable cross-section 0.5-2.5 mm²
Version panel plug
contact surface gold-plated
Cable diameter 10.5 to 15.5 mm
Orientation straight
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
