73000020 | LAPP

Panel plug, 6 pole, crimp connection, straight, 73000020

Order No.: 30P1190
EAN: 4044773623048
MPN:
73000020
EPIC POWER LS1 F7 5+PE K 8,5-1
Series: EPIC POWER LS1

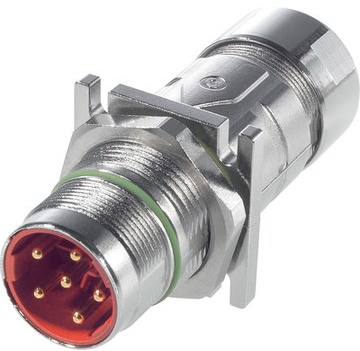

73000020 LAPP Other Circular Connectors Image 1

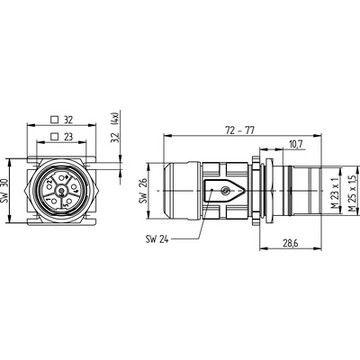

73000020 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
34.3672 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
34.37 € *
Price list
Quantity
Price per unit*
1 pcs.
34.3672 €
10 pcs.
31.4160 €
50 pcs.
29.4525 €
100 pcs.
27.4890 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, 73000020, Lapp Kabel

Circular connector for servo motors and power supply

Features

  • Mechanical and plant engineering
  • Wind energy
  • Good chemical resistance
  • Corrosion-resistant
  • Maximum vibration protection
  • Mechanical resistance
  • Assembly time
  • Optimum strain relief
  • Space requirement

Applications

  • Plant engineering
  • Servo drives and servo assemblies
Technical specifications
Cable diameter 8.5 to 11 mm
contact surface gold-plated
Contact connection crimp connection
Cable cross-section 0.5-2.5 mm²
Pin number 6 pole
Version panel plug
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
