44429346 | LAPP

Jack, 8 pole, crimp connection, straight, 44429346

Order No.: 30P1259
EAN: 4044775043806
MPN:
44429346
EPIC POWER LS3D6 3+PE+4 (1)
Series: EPIC POWER LS3

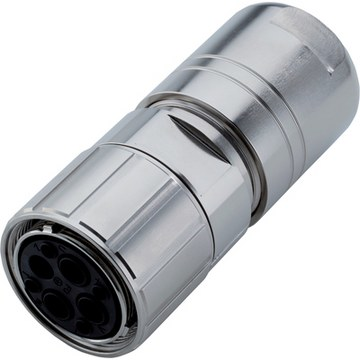

44429346 LAPP Other Circular Connectors Image 1

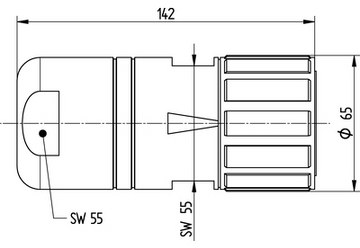

44429346 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
279.4953 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
279.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
279.4953 €

Circular connector, 44429346, Lapp Kabel

Circular connector for servo motors and power supply

Features

  • Robust
  • Reliability
  • Interference signals
  • Waterproof

Applications

  • Plant engineering
  • Servo drives and servo assemblies
Technical specifications
Cable diameter 17 to 25 mm
Assembly cable assembly
Contact connection crimp connection
Cable cross-section 10-50 mm²
Pin number 8 pole
Version jack
Shell Material aluminum
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
