44429344 | LAPP

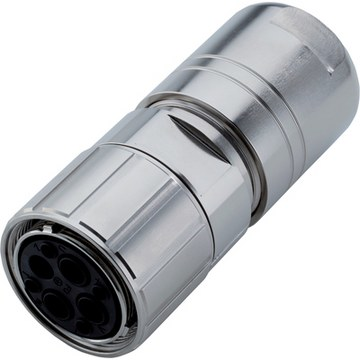

Jack, 6 pole, crimp connection, straight, 44429344

Order No.: 30P1256
EAN: 4044775043479
MPN:
44429344
EPIC POWER LS3D6 3+PE+2
Series: EPIC POWER LS3
44429344 LAPP Other Circular Connectors Image 1
44429344 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
269.2375 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
269.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
269.2375 €

Circular connector, 44429344, Lapp Kabel

Circular connector for servo motors and power supply

Features

  • Robust
  • Reliability
  • Interference signals
  • Waterproof

Applications

  • Plant engineering
  • Servo drives and servo assemblies
Technical specifications
Filter Property Value
Version jack
Orientation straight
Shell Material aluminum
Pin number 6 pole
Cable cross-section 10-50 mm²
Contact connection crimp connection
Cable diameter 17 to 25 mm
Assembly cable assembly
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
