44429302 | LAPP

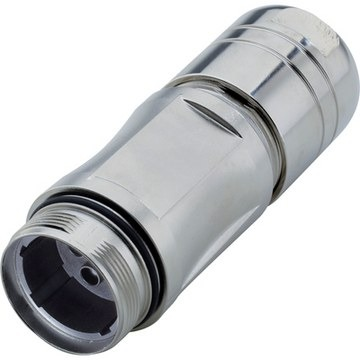

Plug, 6 pole, crimp connection, straight, 44429302
Order No.: 30P1231
EAN: 4044775042144
MPN:
44429302
EPIC POWER LS1.5 F6 3+PE+2 20,
Series: EPIC POWER LS1.5
Unit Price (€ / pc.)
105.5292 € *
Standard delivery time from the manufacturer is: On Request
Circular connector, 44429302, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wide clamping range
- Mechanical resistance
- Optimum strain relief
- Robust
- Interference signals
- Waterproof
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting | |
| Orientation | straight | |
| Assembly | cable assembly | |
| Pin number | 6 pole | |
| Version | plug | |
| Cable diameter | 20.5 to 26.5 mm | |
| Cable cross-section | 0.75-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
