44423066 | LAPP

Jack, 5 pole, crimp connection, straight, 44423066

Order No.: 30P1316
EAN: 4044776704980
MPN:
44423066
EPICPOWERM17 F6 5+PE F3,5-11
Series: EPIC POWER M17

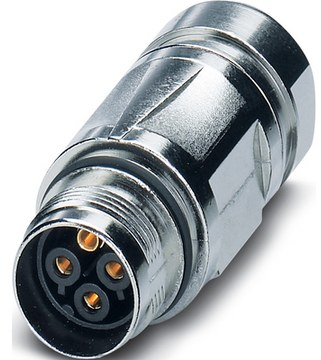

44423066 LAPP Other Circular Connectors Image 1
44423066 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.5362 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.54 € *
Price list
Quantity
Price per unit*
1 pcs.
28.5362 €
5 pcs.
26.9416 €
10 pcs.
25.3589 €
25 pcs.
23.7881 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, 44423066, Lapp Kabel

Circular connector for servo motors and power supply

Features

  • Mechanical and plant engineering
  • Mechanical resistance
  • Optimum strain relief
  • Space requirement
  • Interference signals
  • Waterproof

Applications

  • Servo drives and servo assemblies
  • Plant engineering
  • Machinery manufacturing
Technical specifications
Filter Property Value
Pin number 5 pole
Shell Material zinc die casting
Cable cross-section 0.25-2.5 mm²
Version jack
Assembly cable assembly
Cable diameter 3.5 to 11 mm
Orientation straight
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin QU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
