44423058 | LAPP

Plug, 7 pole, crimp connection, straight, 44423058

Order No.: 30P1311
EAN: 4044776704904
MPN:
44423058
EPICPOWERM17 D6 7+PE M3,5-11
Series: EPIC POWER M17

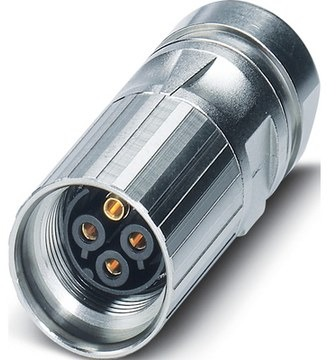

44423058 LAPP Other Circular Connectors Image 1

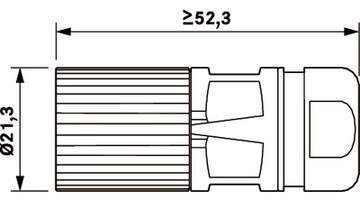

44423058 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.8091 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
30.81 € *
Price list
Quantity
Price per unit*
1 pcs.
30.8091 €
5 pcs.
29.0955 €
10 pcs.
27.3819 €
25 pcs.
25.6683 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, 44423058, Lapp Kabel

Circular connector for servo motors and power supply

Features

  • Mechanical and plant engineering
  • Mechanical resistance
  • Optimum strain relief
  • Space requirement
  • Interference signals
  • Waterproof

Applications

  • Servo drives and servo assemblies
  • Plant engineering
  • Machinery manufacturing
Technical specifications
Cable diameter 3.5 to 11 mm
Assembly cable assembly
Contact connection crimp connection
Cable cross-section 0.25-2.5 mm²
Pin number 7 pole
Version plug
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
