44420148 | LAPP

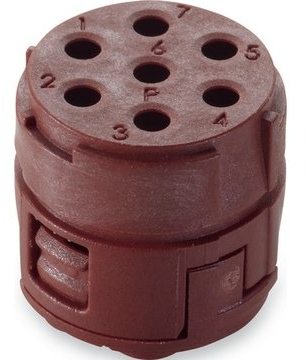

Contact insert, 7 pole, crimp connection, straight, 44420148
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
5 pcs.
3.4629 €
10 pcs.
3.2725 €
20 pcs.
3.0702 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 44420148, Lapp Kabel
Inserts for M23 circular connector
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Mechanical resistance
- Assembly time
- Robust
- Variety of approval certifications
Applications
- Plant engineering
- Measurement and control technology
- Apparatus construction
Technical specifications
| Filter | Property | Value |
|---|---|---|

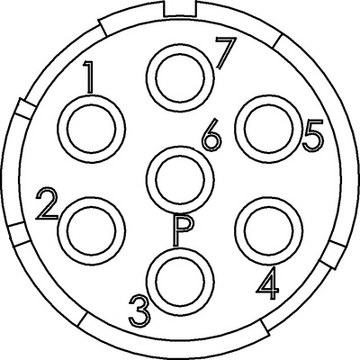

| Pin number | 7 pole | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Version | contact insert | |
| Cable cross-section | 1.0-2.5 mm² | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
