44420121 | LAPP

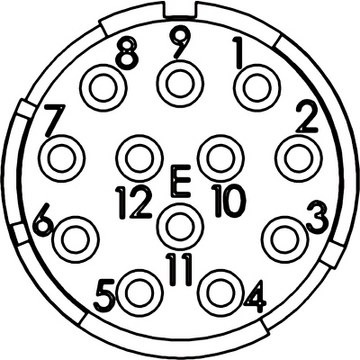

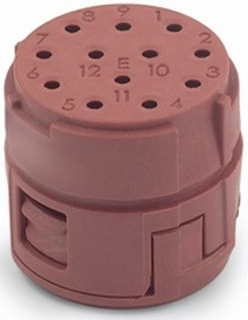

Contact insert, 12 pole, crimp connection, straight, 44420121
Order No.: 30P1601
EAN: 4044774385006
MPN:
44420121
EPIC SIGNALM2312E S D-Sub (20)
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
2.1063 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.11 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1063 €
5 pcs.
1.8921 €
10 pcs.
1.7850 €
20 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 44420121, Lapp Kabel
Inserts for M23 circular connector
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Mechanical resistance
- Assembly time
- Robust
- Variety of approval certifications
Applications
- Plant engineering
- Measurement and control technology
- Apparatus construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Shell Material | brass | |
| Cable cross-section | 0.08-0.56 mm² | |
| Version | contact insert | |
| Orientation | straight | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
