7027130 | LAPP

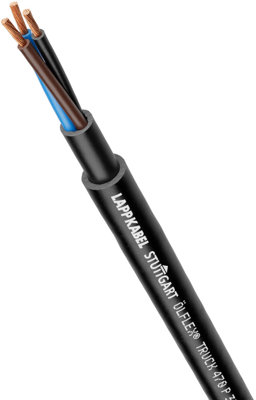

PUR automotive cable ÖLFLEX TRUCK 470 P FLRYY11Y 7 x 0.75 mm², unshielded, black, 7027130
Order No.: 33P2670
EAN: 4044774688107
MPN:
7027130
ÖLFLEX TRUCK 470 P 7X0,75
Series: ÖLFLEX TRUCK 470 P FLRYY11Y
Unit Price (€ / mtr.)
3.8080 € *
Standard delivery time from the manufacturer is: 6 Weeks
PUR/PVC power and control cable, 7027130, LAPP
The 7027130 is a PUR/PVC power and control cable designed for use in commercial vehicles under high mechanical load conditions. Because of ADR approval this product is approved for electrical equipment in all trailers and semi-trailers transporting hazardous goods.
Features
- Hydrolysis and microbe resistant
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Test voltage | 5 kV | |
| Core colour sequence | white/black/yellow/red/green/brown/blue | |
| Cable cross-section | 0.75 mm² | |
| Outer diameter | 7.3 mm | |
| Version | automotive cable | |
| Material | PUR | |
| Number of cores | 7 | |
| Protective conductor available | No | |
| Rated voltage | 60 V | |
| Temperature range (unmoved) | -40 °C to 85 °C | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
