7027068 | LAPP

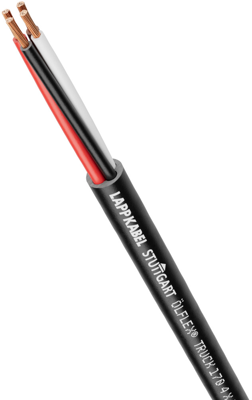

PVC automotive cable ÖLFLEX TRUCK 170 FLRYY 7 x 1x2.5 mm² + 6x1.5 mm², unshielded, black, 7027068
Order No.: 33P2634
EAN: 4044774687131
MPN:
7027068
ÖLFLEX TRUCK 170 FLRYY 1X2,5+6X1,5
Series: ÖLFLEX TRUCK 170 FLRYY
Unit Price (€ / mtr.)
5.0932 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
509.32 € *
Price list
Quantity
Price per unit*
100 mtr.
5.0932 €
500 mtr.
4.6529 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC power and control cable, 7027068, LAPP
The 7027068 is a PVC power and control cable designed for use in commercial vehicles under medium mechanical load conditions. Due to the ADR certificate this product is approved for electrical equipment in trailers and semi-trailers for the transport of dangerous goods.
Features
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Number of cores | 7 | |
| Version | automotive cable | |
| Protective conductor available | No | |
| Core colour sequence | black/yellow/red/green/brown/blue/white | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 5 kV | |
| Halogen free | No | |
| Cable cross-section | 1x2.5 mm² + 6x1.5 mm² | |
| Rated voltage | 60 V | |
| Material | PVC | |
| Temperature range (unmoved) | -40 °C to 85 °C | |
| Cable material | copper, bright | |
| Colour | black | |
| Outer diameter | 10.3 mm | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
