7027015 | LAPP

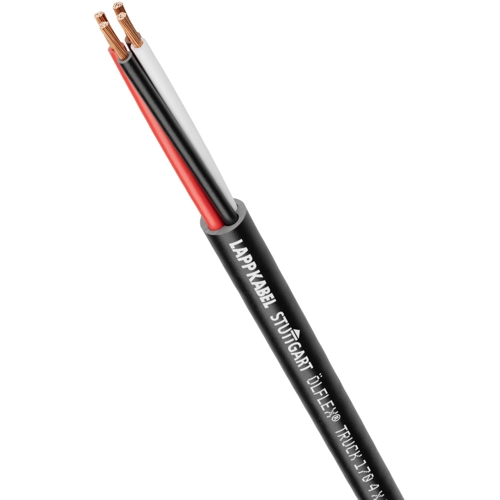

PVC automotive cable ÖLFLEX TRUCK 170 FLRYY 6 x 1x2.5 mm² + 5x1.0 mm², unshielded, black, 7027015
Order No.: 33P2630
EAN: 4044774685793
MPN:
7027015
ÖLFLEX TRUCK 170 FLRYY 1X2,5+5X1
Series: ÖLFLEX TRUCK 170 FLRYY
Unit Price (€ / mtr.)
3.6057 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
360.57 € *
Price list
Quantity
Price per unit*
100 mtr.
3.6057 €
500 mtr.
3.2963 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC power and control cable, 7027015, LAPP
The 7027015 is a PVC power and control cable designed for use in commercial vehicles under medium mechanical load conditions. Due to the ADR certificate this product is approved for electrical equipment in trailers and semi-trailers for the transport of dangerous goods.
Features
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Number of cores | 6 | |
| Version | automotive cable | |
| Protective conductor available | No | |
| Core colour sequence | brown/green/red/gray/purple/white | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 5 kV | |
| Halogen free | No | |
| Cable cross-section | 1x2.5 mm² + 5x1.0 mm² | |
| Rated voltage | 60 V | |
| Material | PVC | |
| Temperature range (unmoved) | -40 °C to 85 °C | |
| Cable material | copper, bright | |
| Colour | black | |
| Outer diameter | 9 mm | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
