700711 | LAPP
TPE servo line ÖLFLEX VFD 2XL with Signal 4 G 2.5 mm², AWG 14, shielded, black, 700711
Order No.: 33P5421
EAN: 4044777770892
MPN:
700711
ÖLFLEX VFD 2XL W/SIGNAL 4xG2,5+(2x1)
Series: ÖLFLEX VFD 2XL with Signal
Unit Price (€ / mtr.)
24.4188 € *
Available: 0 mtr.
Leadtime: On Request **

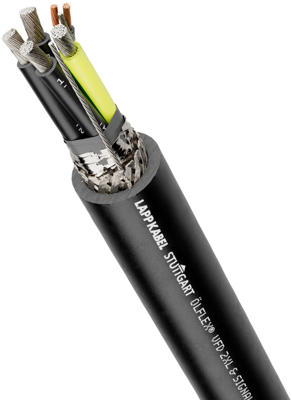

Servo line, 700711, LAPP
Flexible VFD cable with a pair for brake or temperature sensor.
Features
- Flame-retardant
- Oil-resistant
- Sunlight Resistant
Applications
- Connecting cable between Frequency converter and motor
- For fixed installation or applications with occasional movements
- Plant engineering
- Industrial machinery and machine tools
Technical specifications
| Core insulation material | XLPE | |
| Core colour sequence | schwarz | |
| Number of cores | 4 | |
| Version | Servoleitung | |
| Outer diameter | 17.4 mm | |
| AWG cross-section | AWG 14 | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 2,5 mm² | |
| Material | TPE | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 6 kV | |
| Shielding | geschirmt | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C bis 90 °C | |
| Temperature range (unmoved) | -40 °C bis 90 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
