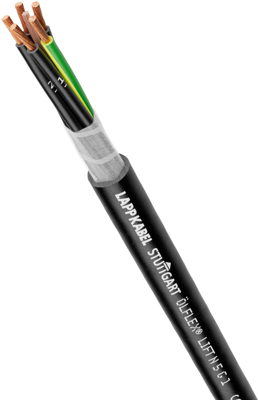

PVC elevator cable ÖLFLEX LIFT N 12 G 1.0 mm², AWG 18, black, 2027022
Unit Price (€ / mtr.)
8.2229 € *
Standard delivery time from the manufacturer is: 6 Weeks
Lift cable, 2027022, LAPP
The 2027022 is a high flexible PVC control cable with a suspension strand and cold-flexible PVC jacket for use in elevators and conveyor systems. For use in dry, damp or wet rooms as well as outdoors but only under consideration of the temperature range. Generally resistant against acids, caustic solution and oils at room temperature.
Features
- Suitable for outdoor use
- Cold-resistant
- Optimum strain relief
- UV-resistant
- Special cable design for a long service life
- Very flexible due to extra-fine wire conductor design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | elevator cable | |
| Conductor category | CL.6 = finest stranded | |
| Number of cores | 12 | |
| Core insulation material | PVC | |
| Test voltage | 4 kV | |
| Cable cross-section | 1.0 mm² | |
| Core colour sequence | black | |
| Temperature range (active) | -15 °C to 70 °C | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | Yes | |
| Outer diameter | 16.1 mm | |
| Colour | black | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
