16000063 | LAPP

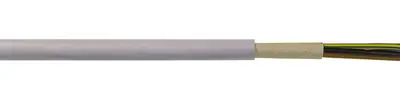

PVC installation line NYM-J 5 G 2.5 mm², unshielded, gray, 16000063

Order No.: 95F156
EAN: 4044774725444
MPN:
16000063
NYM-J 5G2,50 GRAU
Series: NYM-J
16000063 LAPP Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
3.1416 € *
Available: 30 mtr.
Total Price:
3.14 € *
Price list
Quantity
Price per unit*
1 mtr.
3.1416 €
10 mtr.
2.9036 €
100 mtr.
2.6656 €
500 mtr.
2.5109 €
1000 mtr.
2.3562 €
*incl. VAT plus shipping costs
Subject to prior sale

Cables with plastic insulation, type Lapp Kabel NYM-J.

To VDE 0250 part 204, flame retardant to IEC 60332-1-2; Conductors: Bare copper wire. Conductor and outer insulation on PVC base. Conductor ID code: up to 5 conductors with color code to VDE 0293-308, as of 6 conductors black with white numbering, green/yellow ground conductor, conductor harness coated with filler compound. Rated voltage U0/U: 300/500 V. Test voltage: 2000 V, for permanent flush or surface installation on plaster in dry, moist or wet rooms and outdoors (not suitable for exposure to direct sunlight). Color: gray. Operating temperatures, stationary/moving: –40 to +70 °C/+5.0 to +60 °C.

Technical attributes (type, number of poles x cross section, outer diameter, insulation color): 5 x 2,5 mm², OD 11.5 mm

Technical specifications
Rated voltage 500 V
Rated voltage U0 300 V
Cable material copper, bright
Protective conductor available Yes
Cable cross-section 2.5 mm²
Material PVC
Version sheathed line
Temperature range (unmoved) -40 °C to 70 °C
Colour gray
Temperature range (active) 5 °C to 60 °C
Test voltage 2 kV
Number of cores 5
Core insulation material PVC
Core colour sequence VDE 0293-308
Outer diameter 11.5 mm
Halogen free No
Shielding unshielded
Logistics
Country of origin QU
Customs tariff number 85444991
Original Packaging Ring with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
