16000053 | LAPP

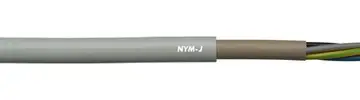

PVC installation line NYM-J 4 G 2.5 mm², unshielded, gray, 16000053
Unit Price (€ / mtr.)
3.7961 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 mtr.
3.7961 €
10 mtr.
3.2963 €
100 mtr.
2.9631 €
500 mtr.
2.7251 €
1000 mtr.
2.4633 €
*incl. VAT plus shipping costs
**Subject to prior sale
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 4 | |
| Version | Mantelleitung | |
| Outer diameter | 10.6 mm | |
| Colour | grau | |
| Halogen free | No | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 2,5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | Yes | |
| Temperature range (active) | 5 °C bis 60 °C | |
| Temperature range (unmoved) | -40 °C bis 70 °C |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85444991 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
