1600003 | LAPP

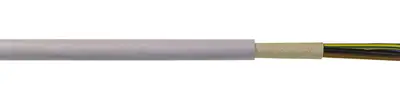

PVC installation line NYM-J 7 G 1.5 mm², unshielded, gray, 1600003

Order No.: 95F158
EAN: 4044774725383
MPN:
1600003
NYM-J 7G1,50 GRAU
Series: NYM-J
1600003 LAPP Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
3.1297 € *
Available: 100 mtr.
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 mtr.
3.1297 €
10 mtr.
2.8917 €
100 mtr.
2.6537 €
500 mtr.
2.4990 €
1000 mtr.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale

Cables with plastic insulation, type Lapp Kabel NYM-J.

To VDE 0250 part 204, flame retardant to IEC 60332-1-2; Conductors: Bare copper wire. Conductor and outer insulation on PVC base. Conductor ID code: up to 5 conductors with color code to VDE 0293-308, as of 6 conductors black with white numbering, green/yellow ground conductor, conductor harness coated with filler compound. Rated voltage U0/U: 300/500 V. Test voltage: 2000 V, for permanent flush or surface installation on plaster in dry, moist or wet rooms and outdoors (not suitable for exposure to direct sunlight). Color: gray. Operating temperatures, stationary/moving: –40 to +70 °C/+5.0 to +60 °C.

Technical attributes (type, number of poles x cross section, outer diameter, insulation color): 7 x 1,5 mm², OD 11.6 mm

Technical specifications
Number of cores 7
Cable cross-section 1.5 mm²
Halogen free No
Core insulation material PVC
Rated voltage U0 300 V
Test voltage 2 kV
Rated voltage 500 V
Protective conductor available Yes
Colour gray
Temperature range (unmoved) -40 °C to 70 °C
Core colour sequence black/green-yellow
Cable material copper, bright
Material PVC
Temperature range (active) 5 °C to 60 °C
Shielding unshielded
Outer diameter 11.6 mm
Version sheathed line
Logistics
Customs tariff number 85444991
Original Packaging Ring with 100 meters
Country of origin PL
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
