15340046 | LAPP

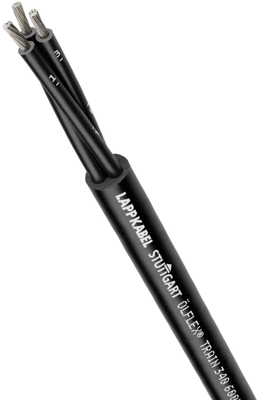

Polymer compound train cable ÖLFLEX TRAIN 340 600V 24 x 0.5 mm², unshielded, black, 15340046
Order No.: 33P2443
EAN: 4044777918157
MPN:
15340046
ÖLFLEX TRAIN 340 600V 24x0,5
Series: ÖLFLEX TRAIN 340 600V
Unit Price (€ / mtr.)
16.0888 € *
Standard delivery time from the manufacturer is: 6 Weeks
Multi-core cable, 15340046, LAPP
The 15340046 is a multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | polymer compound | |
| Cable material | copper, tin-plated | |
| Version | train cable | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 24 | |
| Shielding | unshielded | |
| Core insulation material | electron beam crosslinked polymer compound | |
| Test voltage | 3.5 kV | |
| Cable cross-section | 0.5 mm² | |
| Core colour sequence | black | |
| Temperature range (unmoved) | -45 °C to 120 °C | |
| Temperature range (active) | -35 °C to 90 °C | |
| Rated voltage U0 | 600 V | |
| Protective conductor available | No | |
| Outer diameter | 14.7 mm | |
| Colour | black | |
| Rated voltage | 1 kV | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
