15340017 | LAPP

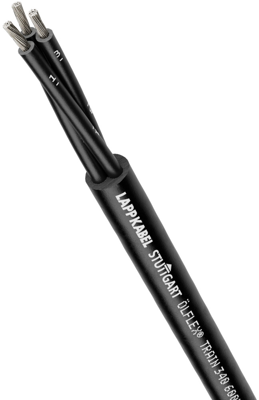

Polymer compound train cable ÖLFLEX TRAIN 340 600V 4 x 16 mm², unshielded, black, 15340017
Order No.: 33P2488
EAN: 4044777254439
MPN:
15340017
ÖLFLEX TRAIN 340 600V 4X16
Series: ÖLFLEX TRAIN 340 600V
Unit Price (€ / mtr.)
35.6286 € *
Standard delivery time from the manufacturer is: 6 Weeks
Multi-core cable, 15340017, LAPP
The 15340017 is a multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | electron beam crosslinked polymer compound | |
| Colour | black | |
| Number of cores | 4 | |
| Protective conductor available | No | |
| Outer diameter | 18.2 mm | |
| Test voltage | 3.5 kV | |
| Halogen free | Yes | |
| Core colour sequence | black | |
| Cable cross-section | 16 mm² | |
| Version | train cable | |
| Material | polymer compound | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -45 °C to 120 °C | |
| Temperature range (active) | -35 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
