15317005 | LAPP

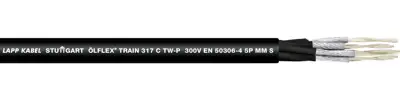

Polymer compound train cable ÖLFLEX TRAIN 317 C TW-P 300V 3 x 0.75 mm², shielded, black, 15317005
Order No.: 33P2307
EAN: 4044777258420
MPN:
15317005
ÖLFLEX TRAIN 317 C TW-P 300V 3X(2X0,75)
Series: ÖLFLEX TRAIN 317 C TW-P 300V
Unit Price (€ / mtr.)
14.2086 € *
Standard delivery time from the manufacturer is: 6 Weeks
Screened multi-core cable, 15317005, LAPP
The 15317005 is a screened multi-core, halogen-free, highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. This product is designed for fixed and protected installation, further for applications, where limited movement may occur. It is particularly used in areas, where human life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- Space requirement
- Interference signals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| Test voltage | 3.5 kV | |
| Core colour sequence | white | |
| Cable cross-section | 0.75 mm² | |
| Outer diameter | 11.1 mm | |
| Version | train cable | |
| Rated voltage U0 | 300 V | |
| Material | polymer compound | |
| Temperature range (active) | -35 °C to 105 °C | |
| Number of cores | 3 | |
| Protective conductor available | No | |
| Rated voltage | 500 V | |
| Temperature range (unmoved) | -45 °C to 125 °C | |
| Shielding | shielded | |
| Core insulation material | electron beam crosslinked polymer compound | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
