15317002 | LAPP

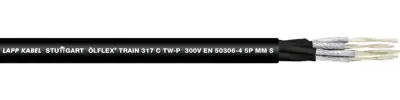

Polymer compound train cable ÖLFLEX TRAIN 317 C TW-P 300V 4 x 0.5 mm², shielded, black, 15317002
Order No.: 33P2310
EAN: 4044777258338
MPN:
15317002
ÖLFLEX TRAIN 317 C TW-P 300V 4X(2X0,5)
Series: ÖLFLEX TRAIN 317 C TW-P 300V
Unit Price (€ / mtr.)
14.6132 € *
Standard delivery time from the manufacturer is: 6 Weeks
Screened multi-core cable, 15317002, LAPP
The 15317002 is a screened multi-core, halogen-free, highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. This product is designed for fixed and protected installation, further for applications, where limited movement may occur. It is particularly used in areas, where human life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- Space requirement
- Interference signals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | electron beam crosslinked polymer compound | |
| Colour | black | |
| Number of cores | 4 | |
| Protective conductor available | No | |
| Outer diameter | 11.3 mm | |
| Test voltage | 3.5 kV | |
| Halogen free | Yes | |
| Core colour sequence | white | |
| Cable cross-section | 0.5 mm² | |
| Version | train cable | |
| Material | polymer compound | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -45 °C to 125 °C | |
| Temperature range (active) | -35 °C to 105 °C | |
| Rated voltage | 500 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
