1023475 | LAPP

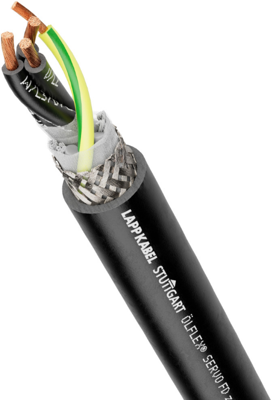

PUR motor connection cable ÖLFLEX SERVO FD zeroCM 3 G 16 mm², AWG 6, shielded, black
Order No.: 33P335
EAN: 4064727809205
MPN:
1023475

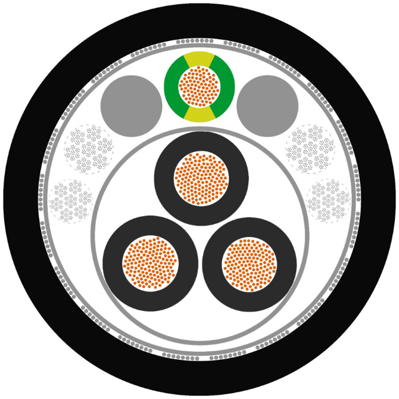

ÖLFLEX SERVO FD zeroCM 3X16+(1G10)
Series: ÖLFLEX SERVO FD zeroCM
Unit Price (€ / mtr.)
51.9554 € *
Available: 100 mtr.
Leadtime: On Request **
Total Price:
51.96 € *
Price list
Quantity
Price per unit*
1 mtr.
51.9554 €
5 mtr.
48.8376 €
10 mtr.
46.9693 €
50 mtr.
44.8749 €
100 mtr.
43.0304 €
*incl. VAT plus shipping costs
**Subject to prior sale
Motor connection cable, 1023475, LAPP
Motor connection cable is high-flexible, screened, oil-resistant, halogen free with an outer sheath of Polyurethane. It is suitable for use in dry, damp or wet areas. It is also suitable for outdoor use if the indicated temperature range is observed. The outer sheath withstands high mechanical stresses, in particular abrasion and dragging. It is also cut proof and resists microbes and hydrolysis.
Features
- For connecting frequency converters and motors
- Machine tools and transfer lines
Technical specifications
| Core insulation material | polypropylene | |
| Core colour sequence | black | |
| Number of cores | 3 | |
| Version | motor connection cable | |
| Outer diameter | 28.2 mm | |
| AWG cross-section | AWG 6 | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 16 mm² | |
| Material | PUR | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 1000 V | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C to 90 °C | |
| Temperature range (unmoved) | -50 °C to 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
