1023472 | LAPP
PUR motor connection cable ÖLFLEX SERVO FD zeroCM 3 G 4.0 mm², AWG 12, shielded, black, 1023472
Order No.: 33P332
EAN: 4064727809052
MPN:
1023472
ÖLFLEX SERVO FD zeroCM 3X4+(1G2,5)
Series: ÖLFLEX SERVO FD zeroCM
Unit Price (€ / mtr.)
23.8833 € *
Available: 95 mtr.
Total Price:
23.88 € *
Price list
Quantity
Price per unit*
1 mtr.
23.8833 €
5 mtr.
22.4553 €
10 mtr.
21.5866 €
50 mtr.
20.6346 €
100 mtr.
19.7540 €
*incl. VAT plus shipping costs
Subject to prior sale

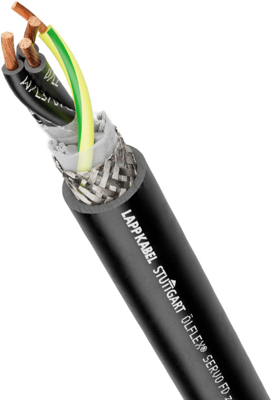

Motor connection cable, 1023472, LAPP
Motor connection cable is high-flexible, screened, oil-resistant, halogen free with an outer sheath of Polyurethane. It is suitable for use in dry, damp or wet areas. It is also suitable for outdoor use if the indicated temperature range is observed. The outer sheath withstands high mechanical stresses, in particular abrasion and dragging. It is also cut proof and resists microbes and hydrolysis.
Features
- For connecting frequency converters and motors
- Machine tools and transfer lines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | polypropylene | |
| AWG cross-section | AWG 12 | |
| Rated voltage UL/CSA | 1000 V | |
| Shielding | shielded | |
| Cable material | copper, bright | |
| Colour | black | |
| Cable cross-section | 4.0 mm² | |
| Temperature range (active) | -40 °C to 90 °C | |
| Core colour sequence | black | |
| Rated voltage U0 | 600 V | |
| Material | PUR | |
| Halogen free | Yes | |
| Rated voltage | 1 kV | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 4 kV | |
| Outer diameter | 18 mm | |
| Number of cores | 3 | |
| Product type | motor connection cable | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -50 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
