1023470 | LAPP

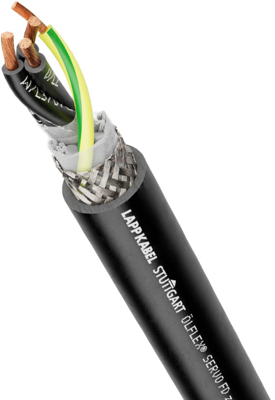

PUR motor connection cable ÖLFLEX SERVO FD zeroCM 3 G 1.5 mm², AWG 16, shielded, black, 1023470
Order No.: 33P330
EAN: 4064727808925
MPN:
1023470

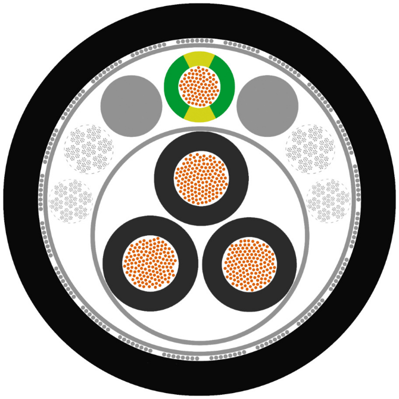

ÖLFLEX SERVO FD zeroCM 3X1,5+(1G1)
Series: ÖLFLEX SERVO FD zeroCM
Unit Price (€ / mtr.)
13.9111 € *
Available: 90 mtr.
Total Price:
13.91 € *
Price list
Quantity
Price per unit*
1 mtr.
13.9111 €
5 mtr.
12.2451 €
10 mtr.
11.4240 €
50 mtr.
10.9123 €
100 mtr.
10.3530 €
*incl. VAT plus shipping costs
Subject to prior sale
Motor connection cable, 1023470, LAPP
Motor connection cable is high-flexible, screened, oil-resistant, halogen free with an outer sheath of Polyurethane. It is suitable for use in dry, damp or wet areas. It is also suitable for outdoor use if the indicated temperature range is observed. The outer sheath withstands high mechanical stresses, in particular abrasion and dragging. It is also cut proof and resists microbes and hydrolysis.
Features
- For connecting frequency converters and motors
- Machine tools and transfer lines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | polypropylene | |
| Colour | black | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 13 mm | |
| AWG cross-section | AWG 16 | |
| Test voltage | 4 kV | |
| Rated voltage UL/CSA | 1000 V | |
| Halogen free | Yes | |
| Core colour sequence | black | |
| Cable cross-section | 1.5 mm² | |
| Version | motor connection cable | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Temperature range (active) | -40 °C to 90 °C | |
| Conductor category | CL.6 = finest stranded | |
| Rated voltage | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
