1020141 | LAPP

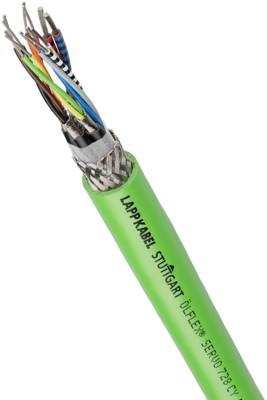

PVC encoder cable ÖLFLEX SERVO 728 CY 12 x 6 x 2x0.25 mm², AWG 24, shielded, green, 1020141
Order No.: 33P1970
EAN: 4044777779338
MPN:
1020141
ÖLFLEX SERVO 728 CY (6x2x0,25)
Series: ÖLFLEX SERVO 728 CY
Unit Price (€ / mtr.)
5.9738 € *
Standard delivery time from the manufacturer is: 6 Weeks
Encoder cable, 1020141, LAPP
Signal cable for occasional flexible use and fixed installation subject to normal mechanical load conditions. It is also suitable for use in dry, damp or wet areas. If using outdoors, observe the indicated temperature range and use with UV protection.
Features
- Low attenuation ensures a longer transmission distance
- Oil-resistant
- Interference signals
Applications
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 300 V | |
| Halogen free | No | |
| Colour | green | |
| Test voltage | 2 kV | |
| Cable cross-section | 6 x 2x0.25 mm² | |
| Outer diameter | 8 mm | |
| Version | encoder cable | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| AWG cross-section | AWG 24 | |
| Number of cores | 12 | |
| Protective conductor available | No | |
| Rated voltage | 30 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Core insulation material | polypropylene | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
