1020073 | LAPP

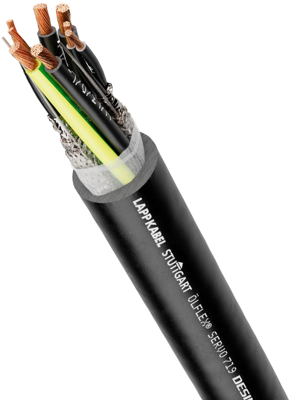

PVC servo line ÖLFLEX SERVO 719 8 G 4G2.5 mm² + 2 x 2x1 mm², unshielded, black, 1020073
Order No.: 33P2201
EAN: 4044777468959
MPN:
1020073
ÖLFLEX SERVO 719 4G2,5+2x(2x1)
Series: ÖLFLEX SERVO 719
Unit Price (€ / mtr.)
12.6021 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control line, 1020073, LAPP
The 1020073 is a low capacitance servo cable with PVC outer sheath for occasional flexible use and fixed installation subject to normal mechanical load conditions. This product is designed for use in dry, damp and wet conditions. At room temperature it is widely resistant against acids, caustic solutions and certain oils.
Features
- Oil-resistant
- UV-resistant
- One common cable for multiple circuits
- Space and weight-saving installations due to small cable diameters
Applications
- Connecting cable between servo controller and motor
- Plant engineering
- Industrial machinery and machine tools
- Printing machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | servo line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 8 | |
| Shielding | unshielded | |
| Core insulation material | polypropylene | |
| Test voltage | 4 kV | |
| Cable cross-section | 4G2.5 mm² + 2 x 2x1 mm² | |
| Core colour sequence | black | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Rated voltage UL/CSA | 1 kV | |
| Rated voltage U0 | 600 V | |
| Protective conductor available | Yes | |
| Outer diameter | 13.6 mm | |
| Colour | black | |
| Rated voltage | 1 kV | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
