0044015 | LAPP

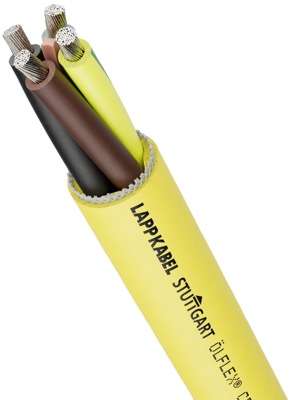

Rubber conveyor equipment cable ÖLFLEX CRANE VS (N)SHTÖU 7 G 2.5 mm², AWG 14, unshielded, yellow, 0044015
Order No.: 33P4950
EAN: 4044774665955
MPN:
0044015
ÖLFLEX CRANE VS (N)SHTÖU 7G2,5
Series: ÖLFLEX CRANE VS (N)SHTÖU
Unit Price (€ / mtr.)
30.4045 € *
Standard delivery time from the manufacturer is: 6 Weeks
Conveyor equipment cable, 0044015, LAPP
The 0044015 is a control cable with a central strength member especially for use in hoists, transport and conveyor systems, also for reeling and unreeling, for high mechanical load considering the admissible values. It is among others useable in dry and damp areas and in industrial water. Considering the indicated temperature range an outdoor use is possible. At room temperature it is generally resistant against acids, alkalis and certain oils.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Optimum strain relief
- UV-resistant
- Reinforced outer sheath design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.5 mm² | |
| Core insulation material | rubber | |
| Protective conductor available | Yes | |
| Outer diameter | 21.6 mm | |
| Material | rubber | |
| Rated voltage U0 | 600 V | |
| Colour | yellow | |
| Core colour sequence | black | |
| Test voltage | 3 kV | |
| Version | conveyor equipment cable | |
| Number of cores | 7 | |
| Temperature range (active) | -25 °C to 80 °C | |
| Shielding | unshielded | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 1000 V | |
| Halogen free | No | |
| AWG cross-section | AWG 14 | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
