0044009 | LAPP

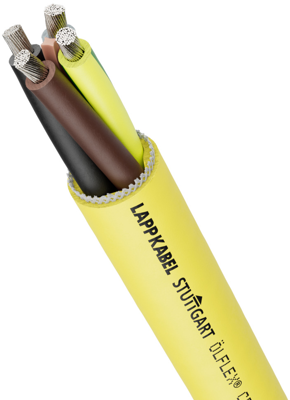

Rubber conveyor equipment cable ÖLFLEX CRANE VS (N)SHTÖU 12 G 1.5 mm², AWG 16, unshielded, yellow, 0044009
Order No.: 33P4936
EAN: 4044774665887
MPN:
0044009
ÖLFLEX CRANE VS (N)SHTÖU 12G1,5
Series: ÖLFLEX CRANE VS (N)SHTÖU
Unit Price (€ / mtr.)
33.1415 € *
Standard delivery time from the manufacturer is: On Request
Conveyor equipment cable, 0044009, LAPP
The 0044009 is a control cable with a central strength member especially for use in hoists, transport and conveyor systems, also for reeling and unreeling, for high mechanical load considering the admissible values. It is among others useable in dry and damp areas and in industrial water. Considering the indicated temperature range an outdoor use is possible. At room temperature it is generally resistant against acids, alkalis and certain oils.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Optimum strain relief
- UV-resistant
- Reinforced outer sheath design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | rubber | |
| Colour | yellow | |
| Number of cores | 12 | |
| Protective conductor available | Yes | |
| Outer diameter | 25.3 mm | |
| AWG cross-section | AWG 16 | |
| Test voltage | 3 kV | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 1.5 mm² | |
| Version | conveyor equipment cable | |
| Material | rubber | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (active) | -25 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
