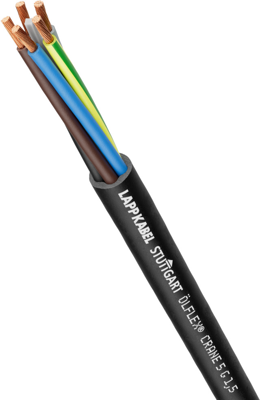

Rubber conveyor equipment cable ÖLFLEX CRANE 4 G 1.0 mm², unshielded, black, 00390033

Order No.: 33P1776
EAN: 4044774662787
MPN:
00390033
ÖLFLEX CRANE 4G1
Series: ÖLFLEX CRANE
00390033 LAPP Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
4.8076 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
480.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
4.8076 €

Control line, 00390033, LAPP

Features

  • Flame-retardant
  • Not suitable for use on guide pulleys or drums under tensile load
  • Refer to the article table for the tensile strength of the cable
  • The cable should be installed in a way that the supporting element can absorb the tensile forces
  • The mobility of the cores must not be affected by the clamps

Applications

  • Machinery and equipment that are permanently exposed to the weather; conveying and hoisting equipment; construction machinery; shipyard machinery
  • Suitable for use in special conditions, such as not more than 2 weeks without interruption of submersion in industrial or sea water
Technical specifications
Core insulation material rubber
Colour black
Number of cores 4
Protective conductor available Yes
Outer diameter 8.9 mm
Test voltage 3 kV
Halogen free No
Core colour sequence VDE 0293-308
Cable cross-section 1.0 mm²
Version conveyor equipment cable
Material rubber
Cable material copper, bright
Shielding unshielded
Rated voltage U0 300 V
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -25 °C to 80 °C
Conductor category CL.6 = finest stranded
Rated voltage 500 V
Logistics
Country of origin IT
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
