0036441 | LAPP

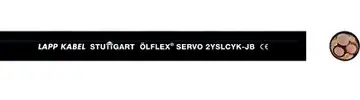

PVC motor connection cable ÖLFLEX SERVO 2YSLCYK-JB 6 x 0.75 mm², shielded, black, 0036441
Order No.: 30P6690
EAN: 4044774638737
MPN:
0036441
ÖLFLEX SERVO 3X4+3G0,75
Series: ÖLFLEX SERVO 2YSLCYK-JB
Unit Price (€ / mtr.)
18.0523 € *
Available: 0 mtr.
Leadtime: On Request **
EMC motor cable, 0036441/100, LAPP KABEL
EMC-optimised motor cable for drives with high electrical power, low-capacitance, double screened.
Features
- Interference signals
- Low-capacitance
- Flame-retardant
- EMC-compliant
Technical specifications
| Core insulation material | Polyethylen | |
| Number of cores | 6 | |
| Version | Motorleitung | |
| Outer diameter | 14.4 mm | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,75 mm² | |
| Material | PVC | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 4 kV | |
| Shielding | geschirmt | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -40 °C bis 70 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444999 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
