0036427 | LAPP

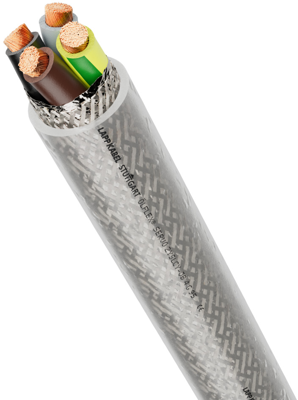

PVC motor connection cable ÖLFLEX SERVO 2YSLCY-JB 4 G 4.0 mm², AWG 12, shielded, transparent, 0036427
Order No.: 33P5337
EAN: 4044774638379
MPN:
0036427
ÖLFLEX SERVO 2YSLCY-JB 4G4
Series: ÖLFLEX SERVO 2YSLCY-JB
Unit Price (€ / mtr.)
15.1725 € *
Standard delivery time from the manufacturer is: On Request
Motor connection cable, 0036427, LAPP
This 0036427 is double-shielded low-capacitance supply cable of flexible design; suitable for frequency inverters driven three-phase motors of small, medium to large power. It is suitable for use in dry, damp and wet rooms. At room temperature, it is largely resistant to the effects of acids, alkalis and certain oils. This design also improves the electromagnetic compatibility (EMC) of the entire drive system. In addition, the low-capacitance cable design compared with PVC-insulated cables means that the frequency inverter is equipped with significantly lower capacitive reactive power losses.
Features
- Flame-retardant
- High power transmission for large drives
- Low capacitance design enables longer cable connection between frequency converter and motor
Applications
- Connecting cable between frequency converter and motor
- In dry, damp or wet interiors
- Paper industry
- Chemical industry
- Heavy industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PE | |
| Colour | transparent | |
| Number of cores | 4 | |
| Protective conductor available | Yes | |
| Outer diameter | 15.6 mm | |
| AWG cross-section | AWG 12 | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Cable cross-section | 4.0 mm² | |
| Version | motor connection cable | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
