0036426 | LAPP

PVC motor connection cable ÖLFLEX SERVO 2YSLCY-JB 4 G 2.5 mm², AWG 14, shielded, transparent, 0036426

Order No.: 33P5334
EAN: 4044774638331
MPN:
0036426
ÖLFLEX SERVO 2YSLCY-JB 4G2,5
0036426 LAPP Other Cables and Wires

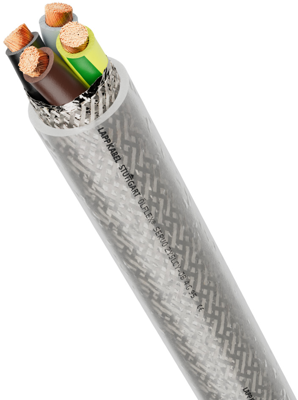

Image may differ
Unit Price (€ / mtr.)
9.6509 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
965.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
9.6509 €

Motor connection cable, 0036426, LAPP

This 0036426 is double-shielded low-capacitance supply cable of flexible design; suitable for frequency inverters driven three-phase motors of small, medium to large power. It is suitable for use in dry, damp and wet rooms. At room temperature, it is largely resistant to the effects of acids, alkalis and certain oils. This design also improves the electromagnetic compatibility (EMC) of the entire drive system. In addition, the low-capacitance cable design compared with PVC-insulated cables means that the frequency inverter is equipped with significantly lower capacitive reactive power losses.

Features

  • Flame-retardant
  • High power transmission for large drives
  • Low capacitance design enables longer cable connection between frequency converter and motor

Applications

  • Connecting cable between frequency converter and motor
  • In dry, damp or wet interiors
  • Paper industry
  • Chemical industry
  • Heavy industry
Technical specifications
Core insulation material PE
Colour transparent
Number of cores 4
Protective conductor available Yes
Outer diameter 12.4 mm
AWG cross-section AWG 14
Test voltage 4 kV
Halogen free No
Cable cross-section 2.5 mm²
Version motor connection cable
Material PVC
Cable material copper, bright
Shielding shielded
Rated voltage U0 600 V
Temperature range (unmoved) -40 °C to 70 °C
Temperature range (active) -5 °C to 70 °C
Conductor category CL.5 = fine stranded
Rated voltage 1 kV
Logistics
Country of origin QU
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
