0029664/100 | LAPP

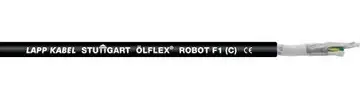

PUR robot cable ÖLFLEX ROBOT F1 (C) 4 G 1.5 mm², shielded, black, 0029664/100
Order No.: 30P5473
EAN: 4044774662510
MPN:
0029664/100
ÖLFLEX ROBOT F1 (D) 4G1,5
Series: ÖLFLEX ROBOT F1 (C)
Unit Price (€ / mtr.)
19.278 € *
Standard delivery time from the manufacturer is: On Request
PUR robot cable, 0029664/100, LAPP KABEL
Power and control cable for high dynamic bending and torsion motions in harsh environmental conditions.
Features
- Torsion-resistant
- Mechanical resistance
- Oil-resistant
- Cold-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Version | robot cable | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Core insulation material | TPE | |
| Cable cross-section | 1.5 mm² | |
| Core colour sequence | white | |
| Temperature range (unmoved) | -50 °C to 80 °C | |
| Temperature range (active) | -40 °C to 80 °C | |
| Torsion load | 180 ° | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | Yes | |
| Outer diameter | 8.8 mm | |
| Colour | black | |
| Rated voltage | 500 V | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
