PUR robot cable ÖLFLEX ROBOT F1 25 x 0.34 mm², AWG 22, unshielded, anthracite, 0029594
Unit Price (€ / mtr.)
6.1642 € *
Standard delivery time from the manufacturer is: 6 Weeks

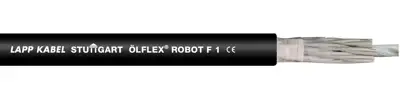

Robot cable, 0029594, LAPP
The 0029594 is especially designed to withstand torsion and bending stress in once, e.g. for connecting handling tools to assemblingor welding robotics, to manipulators, for connecting to rotating or tilting tables. The cable increased oil-resistant at room temperature generally resistant against acids and caustics solutions. The outer sheath of Polyurethane is resistant against high mechanical stress, particularly to abrasion cuts, microbe proof and hydrolysis resistant.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Torsion-resistant
- UV-resistant
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Version | robot cable | |
| Conductor category | CL.6 = finest stranded | |
| Number of cores | 25 | |
| Shielding | unshielded | |
| Core insulation material | TPE | |
| Test voltage | 1.5 kV | |
| Cable cross-section | 0.34 mm² | |
| Core colour sequence | DIN 47100 | |
| Temperature range (unmoved) | -50 °C to 80 °C | |
| Temperature range (active) | -40 °C to 80 °C | |
| Rated voltage UL/CSA | 600 V | |
| Protective conductor available | No | |
| Outer diameter | 4.6 mm | |
| Colour | anthracite | |
| Rated voltage | 48 V | |
| Halogen free | No | |
| AWG cross-section | AWG 22 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
