0028100 | LAPP

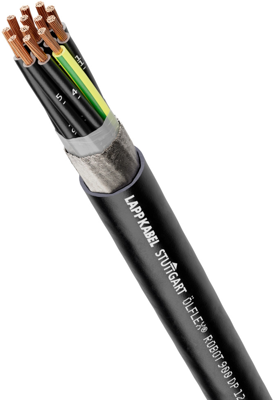

PUR robot cable ÖLFLEX ROBOT 900 DP 12 x 0.14 mm², shielded, black, 0028100
Order No.: 33P5077
EAN: 4044774659961
MPN:
0028100
ÖLFLEX ROBOT 900 DP 12x0,14
Series: ÖLFLEX ROBOT 900 DP
Unit Price (€ / mtr.)
11.6025 € *
Standard delivery time from the manufacturer is: On Request
Robot cable, 0028100, LAPP
The 0028100 is a special cable for torsion and bending stresses. It can be used for the transmission of control and monitoring signals or as supply cables. This product is suitable for use in dry, damp or wet areas and also suitable for outdoor use if the indicated temperature range is observed. The outer sheath withstands high mechanical stresses, in particular abrasion and dragging. It is also cut proof and resists microbes and hydrolysis.
Features
- Flame-retardant
- High oil-resistance
- Flexible at low temperatures
- Low-adhesive surface
- Cold-resistant
- Mechanical resistance
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | TPE | |
| Colour | black | |
| Number of cores | 12 | |
| Protective conductor available | No | |
| Outer diameter | 6.7 mm | |
| Test voltage | 1.5 kV | |
| Halogen free | No | |
| Cable cross-section | 0.14 mm² | |
| Version | robot cable | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Temperature range (unmoved) | -50 °C to 80 °C | |
| Temperature range (active) | -40 °C to 80 °C | |
| Torsion load | 180 ° | |
| Rated voltage | 48 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
