0025326 | LAPP

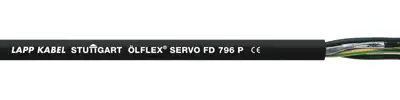

Name: PUR servo line ÖLFLEX SERVO FD 796 4 G 0.75 mm², AWG 19, unshielded, black, 0025326
Brand: LAPP
SKU: 33P5353
Availability: InStock

PUR servo line ÖLFLEX SERVO FD 796 4 G 0.75 mm², AWG 19, unshielded, black, 0025326

Order No.: 33P5353

EAN: 4044776451891

MPN:

0025326

ÖLFLEX SERVO FD 796P 4G0,75+2x(2x0,34)

Series: ÖLFLEX SERVO FD 796

Unit Price (€ / mtr.)

13.5898 € *

Standard delivery time from the manufacturer is: 6 Weeks

Total Price:

1,358.98 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Servo line, 0025326, LAPP

This 0025326 is highly flexible, oil-resistant, halogen-free, low-capacitance servo motor cables with a polyurethane outer jacket. It is designed for use in highly dynamic applications at accelerations up to 50 m/s² in cable drag chains as well as for fixed installation under medium mechanical stress. This cable is suitable for use in dry, damp or wet environments, among others. Under consideration of the temperature range, outdoor use is possible.

Features

Flame-retardant
Oil-resistant
UV and weather-resistant

Applications

Very suitable for power circuits as an external connection or for the internal wirings in electric and electronic equipment
In dry or damp interiors with low mechanical stress conditions
Can be used indoors as a connecting cable to the inverter in the photovoltaic sector
Outdoor use is possible within the indicated operating temperature range

Technical specifications

Filter	Property	Value
	Rated voltage UL/CSA	1000 V
	Halogen free	Yes
	Colour	black
	Test voltage	4 kV
	Cable cross-section	0.75 mm²
	Outer diameter	10.9 mm
	Version	servo line
	Rated voltage U0	600 V
	Material	PUR
	Temperature range (active)	-40 °C to 90 °C
	AWG cross-section	AWG 19
	Number of cores	4
	Protective conductor available	Yes
	Rated voltage	1 kV
	Temperature range (unmoved)	-50 °C to 90 °C
	Shielding	unshielded
	Core insulation material	polypropylene
	Conductor category	CL.6 = finest stranded
	Cable material	copper, bright
