52103371 | LAPP
Earth potential equalization locknut, M75x1.5, W 85 mm, H 8 mm, outer Ø 95 mm, brass, nickel-plated, 52103371
Order No.: 32P2160
EAN: 4044774405186
MPN:
52103371
SKINDICHT SM-PE-M 75x1,5
Series: SKINDICHT SM-PE-M
Unit Price (€ / pc.)
23.7286 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.73 € *
Price list
Quantity
Price per unit*
1 pcs.
23.7286 €
10 pcs.
22.4910 €
25 pcs.
21.2415 €
50 pcs.
19.9920 €
100 pcs.
18.7425 €
*incl. VAT plus shipping costs
Subject to prior sale

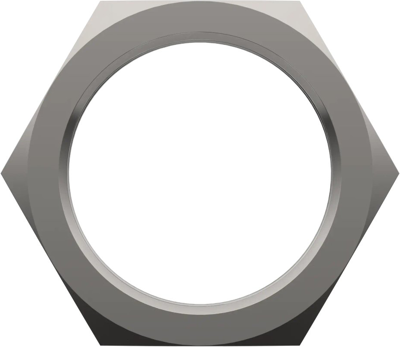

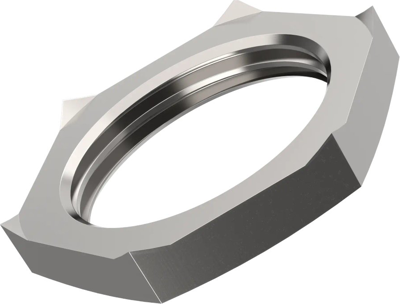

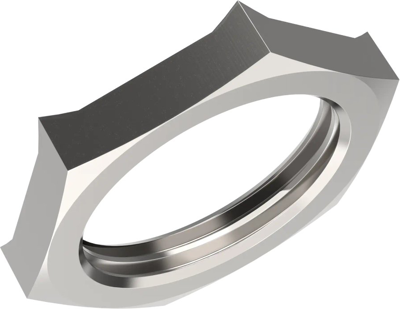

Lock nut, 52103371, LAPP
The 52103371 is an earth-equipotential locknut, nickel-plated brass with metric thread. It is required wherever varnished, anodized and powder coated housings are used. When the locknut is tightened, it cuts through the insulating layer guaranteeing optimum contact.
Features
- Withstands high chemical and mechanical loads
- Suitable for outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | counter nut | |
| Spindle drive type | external hexagon | |
| Thread size | M75 | |
| Height | 8 mm | |
| Thread pitch | 1.5 mm | |
| spanner size | 85 mm | |
| Outer diameter | 95 mm | |
| Material | brass, nickel-plated | |
| Colour | silver gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
