52103330 | LAPP
Earth potential equalization locknut, M25x1.5, W 30 mm, H 4.2 mm, outer Ø 33 mm, brass, nickel-plated, 52103330
Order No.: 32P2159
EAN: 4044773181906
MPN:
52103330
SKINDICHT SM-PE-M 25x1,5
Series: SKINDICHT SM-PE-M
Unit Price (€ / pc.)
2.1420 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1420 €
10 pcs.
2.0230 €
25 pcs.
1.9278 €
50 pcs.
1.7969 €
100 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

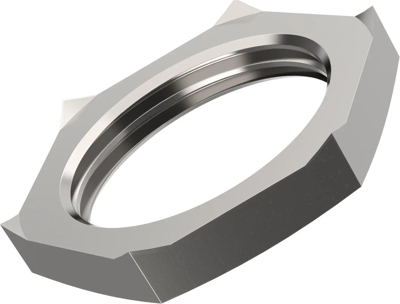

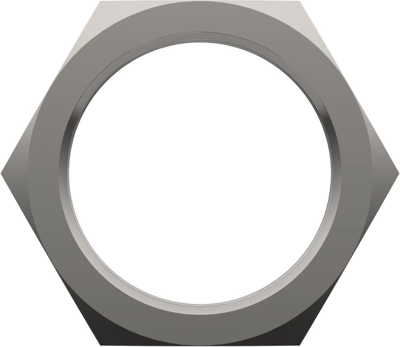

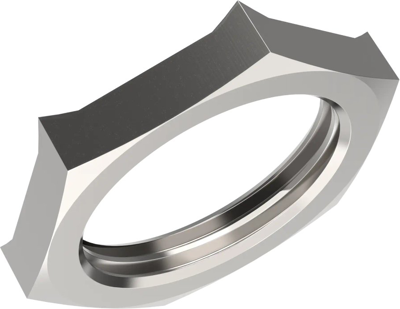

Lock nut, 52103330, LAPP
The 52103330 is an earth-equipotential locknut, nickel-plated brass with metric thread. It is required wherever varnished, anodized and powder coated housings are used. When the locknut is tightened, it cuts through the insulating layer guaranteeing optimum contact.
Features
- Withstands high chemical and mechanical loads
- Suitable for outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| Thread size | M25 | |
| Spindle drive type | external hexagon | |
| Outer diameter | 33 mm | |
| spanner size | 30 mm | |
| Height | 4.2 mm | |
| Material | brass, nickel-plated | |
| Thread pitch | 1.5 mm | |
| Version | counter nut |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
