52103320 | LAPP
Earth potential equalization locknut, M20x1.5, W 24 mm, H 3.7 mm, outer Ø 26.4 mm, brass, nickel-plated, 52103320
Order No.: 32P2158
EAN: 4044773181920
MPN:
52103320
SKINDICHT SM-PE-M 20x1,5
Series: SKINDICHT SM-PE-M
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.2614 € *
Available: 87 pcs.
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
1.2019 €
25 pcs.
1.1424 €
50 pcs.
1.0710 €
100 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

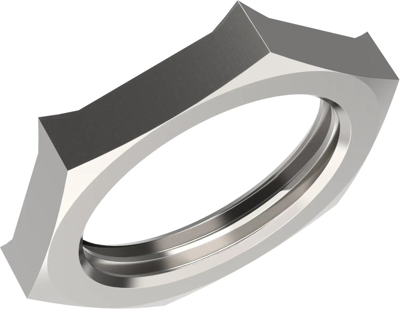

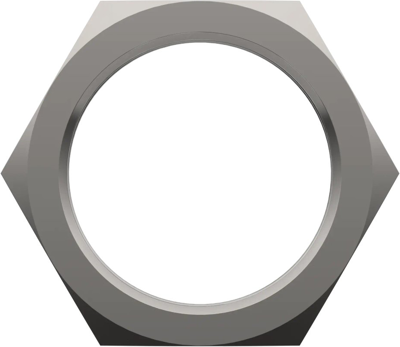

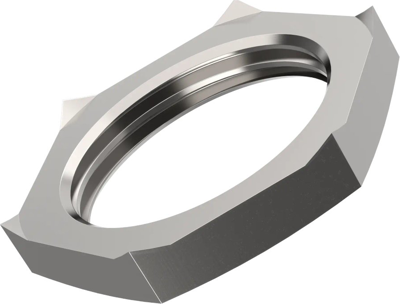

Lock nut, 52103320, LAPP
The 52103320 is an earth-equipotential locknut, nickel-plated brass with metric thread. It is required wherever varnished, anodized and powder coated housings are used. When the locknut is tightened, it cuts through the insulating layer guaranteeing optimum contact.
Features
- Withstands high chemical and mechanical loads
- Suitable for outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | counter nut | |
| Spindle drive type | external hexagon | |
| Thread size | M20 | |
| Height | 3.7 mm | |
| Thread pitch | 1.5 mm | |
| spanner size | 24 mm | |
| Outer diameter | 26.4 mm | |
| Material | brass, nickel-plated | |
| Colour | silver gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74153300 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
