52103300 | LAPP

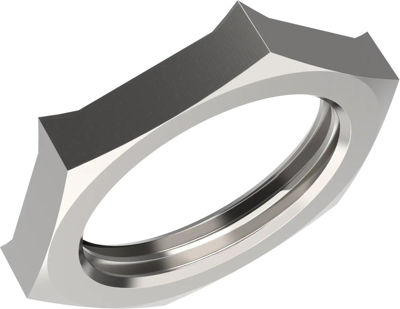

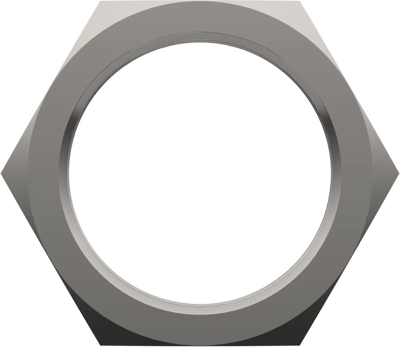

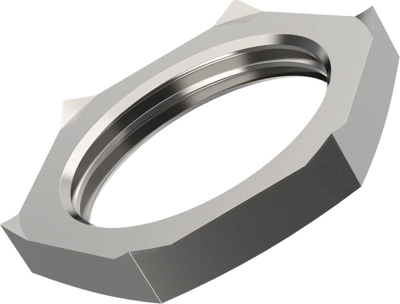

Earth potential equalization locknut, M12x1.5, W 15 mm, H 3.5 mm, outer Ø 16.5 mm, brass, nickel-plated, 52103300
Order No.: 32P2156
EAN: 4044773182002
MPN:
52103300
SKINDICHT SM-PE-M 12x1,5
Series: SKINDICHT SM-PE-M
Unit Price (€ / pc.)
1.0829 € *
Available: 57 pcs.
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
1.0115 €
25 pcs.
0.9758 €
50 pcs.
0.9163 €
100 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Lock nut, 52103300, LAPP
The 52103300 is an earth-equipotential locknut, nickel-plated brass with metric thread. It is required wherever varnished, anodized and powder coated housings are used. When the locknut is tightened, it cuts through the insulating layer guaranteeing optimum contact.
Features
- Withstands high chemical and mechanical loads
- Suitable for outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Spindle drive type | external hexagon | |
| Outer diameter | 16.5 mm | |
| Thread pitch | 1.5 mm | |
| Colour | silver gray | |
| Version | counter nut | |
| Thread size | M12 | |
| spanner size | 15 mm | |
| Height | 3.5 mm | |
| Material | brass, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74153300 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
