52003490 | LAPP

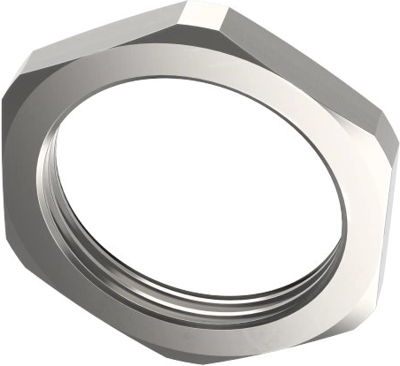

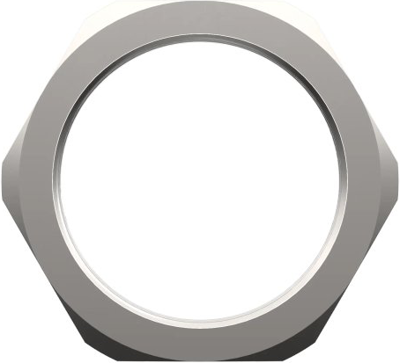

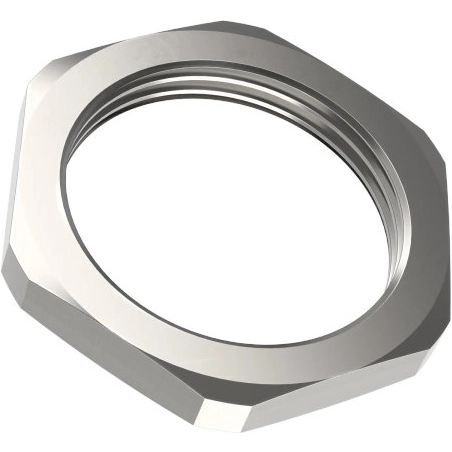

Earth potential equalization locknut, PG7, W 15 mm, H 2.8 mm, outer Ø 16.6 mm, brass, nickel-plated, 52003490
Order No.: 32P2134
EAN: 4044773438505
MPN:
52003490
SKINDICHT SM PG 7 Gegenmutter
Series: SKINDICHT SM
Unit Price (€ / pc.)
0.3927 € *
Available: 767 pcs.
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3570 €
25 pcs.
0.3451 €
50 pcs.
0.3213 €
100 pcs.
0.2963 €
*incl. VAT plus shipping costs
Subject to prior sale
Lock nut, 52003490, LAPP
The 52003490 is a nickel-plated brass locknut with PG-thread. It is required wherever a gland must be secured or thin housing walls allow only through-holes.
Features
- Withstands high chemical and mechanical loads
- For locking a cable gland on the inside of the application (e.g. housing)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| Thread size | PG7 | |
| Outer diameter | 16.6 mm | |
| spanner size | 15 mm | |
| Material | brass, nickel-plated | |
| Version | counter nut | |
| Height | 2.8 mm | |
| Spindle drive type | external hexagon |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74153300 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
