4724072 | LAPP
Switching strand, halogen free, H07Z1-K, 4.0 mm², gray, outer Ø 4.8 mm, 4724072
Unit Price (€ / mtr.)
1.2733 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2733 €
10 mtr.
1.0829 €
50 mtr.
0.9877 €
100 mtr.
0.8925 €
500 mtr.
0.8211 €
*incl. VAT plus shipping costs
Subject to prior sale

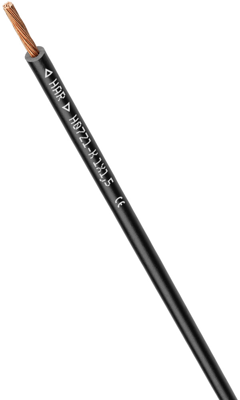

Switching strand, 4724072, LAPP
The 4724072 is a halogen-free, low smoke cable with cross-linked insulation and low emission of corrosive gases. For wiring of lamps, machine tools and splitter and especially for applications where low smoke density and low emission of corrosive gases are required at in case of fire.
Applications
- Wiring of lamps, devices, switchgear cabinets and distribution boxes
- Installation in tubes, on, in and under plaster as well as in closed installation ducts
- Use in dry rooms
- Expanded ambient temperatures
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bending radius unmoved | 19.2 mm | |
| Cable material | copper, bright | |
| Colour | gray | |
| Cable cross-section | 4.0 mm² | |
| Temperature range (active) | -5 °C to 70 °C | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Halogen free | Yes | |
| Rated voltage | 750 V | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2.5 kV | |
| Outer diameter | 4.8 mm | |
| Product type | switching strand | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
