4571101 | LAPP
Grounding cable, ESUY, 16 mm², transparent, outer Ø 8.8 mm, 4571101
Unit Price (€ / mtr.)
14.399 € *
Standard delivery time from the manufacturer is: On Request

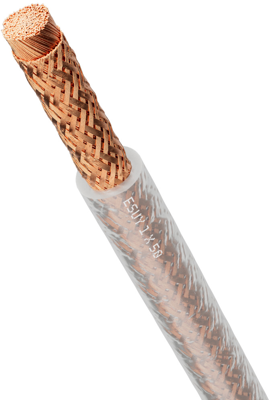

Copper earthing cable, 4571101, LAPP
Copper earthing cable ESUY is designed for grounding of usually current carrying parts in high voltage installations of rails during repair works. In addition it is used for grounding or potential compensation at machine parts and electronic data processing installation.
Features
- Mechanically highly flexible
- Transparent PVC oute sheath
- Flame-retardant
- Dust and moisture protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | grounding cable | |
| Cable cross-section | 16 mm² | |
| Colour | transparent | |
| Material | PVC | |
| Outer diameter | 8.8 mm | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -5 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Bending radius moved | 105.6 mm | |
| Bending radius unmoved | 105.6 mm | |
| Test voltage | 2 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
