4527062 | LAPP

PVC-switching wire, H07V-U, 2.5 mm², gray, outer Ø 3.9 mm, 4527062

Order No.: 33P3294
EAN: 4044775308684
MPN:
4527062
H07V-U 1X2,5 GY
Series: H07V-U
4527062 LAPP Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.7616 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
76.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
0.7616 €

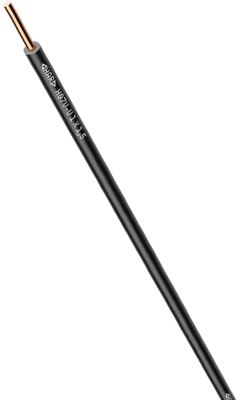

Switching wire, 4527062, LAPP

The 4527062 is a single-conductor cables with thermoplastic PVC-insulation for installation inside of closed conduits and cable ducting systems and on or under plaster as well as in similar closed systems. It is suitable for protected, stationary use in or on lighting installation or control units/ switchgear in conjunction with voltages up to 1000 V AC or 750 V DC to-ground.

Features

  • Flame-retardant

Applications

  • Laying in tubes
  • Direct laying on racks, troughs and tubes only as potential equalisation conductor
Technical specifications
Filter Property Value
Bending radius unmoved 15.6 mm
Rated voltage U0 450 V
Rated voltage 750 V
Cable cross-section 2.5 mm²
Test voltage 2.5 kV
Temperature range (unmoved) -40 °C to 80 °C
Standard number VDE
Cable material copper, bright
Outer diameter 3.9 mm
Core insulation material PVC
Colour gray
Conductor category CL.1 = stranded
Halogen free No
Logistics
Property Value
Country of origin IT
Customs tariff number 85444995
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
