4527012 | LAPP

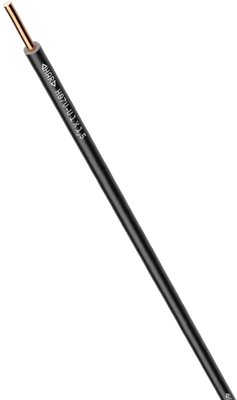

PVC-switching wire, H07V-U, 2.5 mm², black, outer Ø 3.2 mm, 4527012
Unit Price (€ / mtr.)
0.7497 € *
Available: 0 mtr.
Leadtime: 1 Week **
Switching wire, 4527012, LAPP
The 4527012 is a single-conductor cables with thermoplastic PVC-insulation for installation inside of closed conduits and cable ducting systems and on or under plaster as well as in similar closed systems. It is suitable for protected, stationary use in or on lighting installation or control units/ switchgear in conjunction with voltages up to 1000 V AC or 750 V DC to-ground.
Features
- Flame-retardant
Applications
- Laying in tubes
- Direct laying on racks, troughs and tubes only as potential equalisation conductor
Technical specifications
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Core insulation material | PVC | |
| Standard number | VDE | |
| Bending radius unmoved | 15.6 mm | |
| Conductor category | CL.1 = stranded | |
| Colour | black | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Cable cross-section | 2.5 mm² | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Outer diameter | 3.2 mm | |
| Test voltage | 2.5 kV |
Download
Logistics
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
