4527011 | LAPP

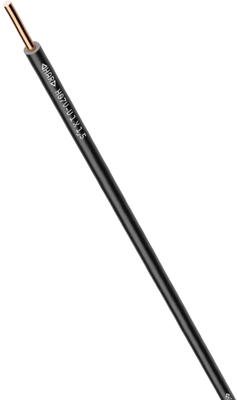

PVC-switching wire, H07V-U, 1.5 mm², black, outer Ø 3.2 mm, 4527011
Unit Price (€ / mtr.)
0.4522 € *
Available: 300 mtr.
Switching wire, 4527011, LAPP
The 4527011 is a single-conductor cables with thermoplastic PVC-insulation for installation inside of closed conduits and cable ducting systems and on or under plaster as well as in similar closed systems. It is suitable for protected, stationary use in or on lighting installation or control units/ switchgear in conjunction with voltages up to 1000 V AC or 750 V DC to-ground.
Features
- Flame-retardant
Applications
- Laying in tubes
- Direct laying on racks, troughs and tubes only as potential equalisation conductor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage U0 | 450 V | |
| Colour | black | |
| Outer diameter | 3.2 mm | |
| Bending radius unmoved | 12.8 mm | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Rated voltage | 750 V | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Product type | switching wire | |
| Test voltage | 2.5 kV | |
| Cable cross-section | 1.5 mm² | |
| Conductor category | CL.1 = stranded | |
| Standard number | VDE |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
